This tutorial demonstrates a cost-aware sequential design workflow on the 2D Branin-Hoo function. The surrogate starts from an initial Latin hypercube design of 10 function evaluations. At each active-learning step, the algorithm chooses the next observation from one shared candidate set:

  • a new function evaluation,

  • a first-order directional derivative at an existing function site, or

  • a second-order directional derivative at an existing function site.

The candidate score is a prior-relative uncertainty reduction per unit cost. This lets inexpensive derivative observations compete directly with more expensive function evaluations.

In this example, the model is allowed to acquire both first- and second-order directional derivatives. The figures below show how the design evolves over a few sequential steps and what the final surrogate looks like.

—

Step 1: Define the Branin-Hoo Function#

The Branin-Hoo function is a standard 2D test function on \(x_1 \in [-5, 10]\) and \(x_2 \in [0, 15]\):

\[f(x_1, x_2) = \left(x_2 - \frac{5.1}{4\pi^2}x_1^2 + \frac{5}{\pi}x_1 - 6\right)^2 + 10\left(1 - \frac{1}{8\pi}\right)\cos(x_1) + 10.\]

For derivative-enhanced active learning, we provide the analytical gradient and Hessian. The gradient supplies first-order directional derivatives, and the Hessian supplies pure second directional derivatives \(v^T H(x) v\).

import numpy as np

A = 1.0
B = 5.1 / (4 * np.pi**2)
C = 5.0 / np.pi
R = 6.0
S = 10.0
T = 1.0 / (8.0 * np.pi)

BOUNDS = np.array([[-5.0, 10.0], [0.0, 15.0]])

def branin(X):
    X = np.atleast_2d(X)
    x1, x2 = X[:, 0], X[:, 1]
    term = x2 - B * x1**2 + C * x1 - R
    y = A * term**2 + S * (1 - T) * np.cos(x1) + S
    return y.reshape(-1, 1)

def branin_grad(X):
    X = np.atleast_2d(X)
    x1, x2 = X[:, 0], X[:, 1]
    term = x2 - B * x1**2 + C * x1 - R
    df_dx1 = 2 * A * term * (-2 * B * x1 + C) - S * (1 - T) * np.sin(x1)
    df_dx2 = 2 * A * term
    return np.column_stack([df_dx1, df_dx2])

def branin_hess(X):
    X = np.atleast_2d(X)
    x1, x2 = X[0, 0], X[0, 1]
    term = x2 - B * x1**2 + C * x1 - R
    dterm_dx1 = -2 * B * x1 + C
    d2term_dx1 = -2 * B
    h11 = 2 * A * (dterm_dx1**2 + term * d2term_dx1) - S * (1 - T) * np.cos(x1)
    h12 = 2 * A * dterm_dx1
    h22 = 2 * A
    return np.array([[h11, h12], [h12, h22]])

—

Step 2: Configure the Active-Learning Run#

The active-learning driver is AdaptiveDirectionalGP. Here we start with 10 initial function observations and run up to 15 active-learning steps.

The cost model in this tutorial is:

  • function value: c_f = 1.0

  • first directional derivative: c1 = 0.25

  • second directional derivative: c2 = 0.35

This intentionally makes derivative observations cheaper than function evaluations, while still allowing the acquisition function to pick a new function value when its uncertainty-per-cost score is better.

from adaptive_doe import AdaptiveDirectionalGP

al = AdaptiveDirectionalGP(
    func=branin,
    grad_func=branin_grad,
    hess_func=branin_hess,
    acquire_second_order=True,
    bounds=BOUNDS,
    n_init=10,
    rel_tol=0.00,
    n_iter=15,
    seed=11,
    c_f=1.0,
    c1=0.25,
    c2=0.35,
    max_directions=2,
    optimizer_kwargs={
        "pop_size": 40,
        "n_generations": 20,
        "local_opt_every": 20,
        "debug": False,
    },
)

history = al.run()

If this code is run outside the active_learning directory, add that directory to PYTHONPATH first. The figure-generation script at the end of this tutorial does that path setup automatically.

Explanation:

  • acquire_second_order=True allows second-order directional derivatives to enter the candidate set.

  • max_directions=2 allows up to two derivative directions per function site.

  • rel_tol=0.00 keeps every candidate with strictly positive prior-relative uncertainty; tightening this would discard low-information picks.

  • history records the selected candidate type, score, cumulative cost, and training-set counts after each step.

—

Step 3: Inspect the Sequential Design#

The following figure shows the design after a few active-learning steps. White circles are function-evaluation sites. Red arrows show acquired first-order directional derivatives. Cyan square markers/arrows indicate locations and directions where second-order directional information was also selected.

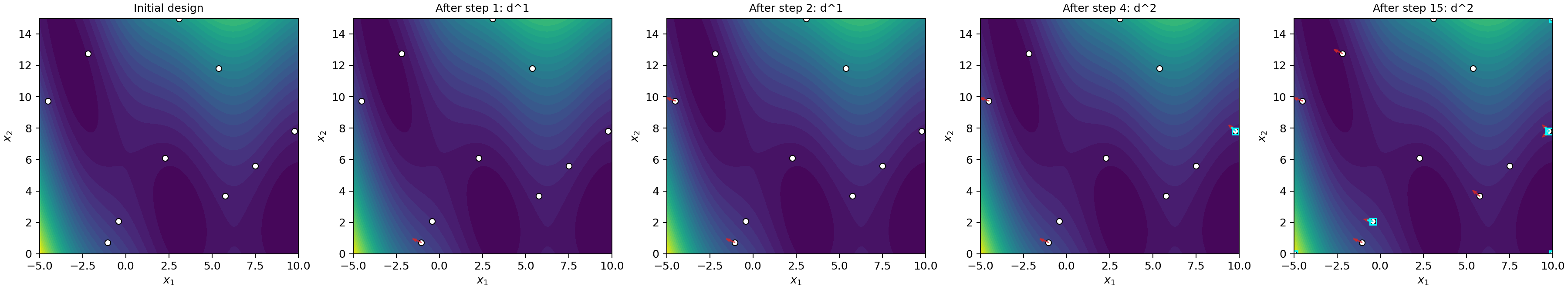

Sequential cost-aware active-learning design for the Branin-Hoo function

In this run, the algorithm starts by spending budget on derivative information at existing sites. This is typical when gradients are relatively cheap: a directional derivative can sharply reduce local uncertainty without paying for a new function solve. When the function-evaluation candidate becomes more valuable per unit cost, it can still be selected by the same scoring rule.

—

Step 4: Inspect the Final Surrogate#

After the active-learning loop, query the GP posterior on a grid:

from posterior_queries import query_function_posterior_batched

def make_grid(n_per_axis):
    x1 = np.linspace(BOUNDS[0, 0], BOUNDS[0, 1], n_per_axis)
    x2 = np.linspace(BOUNDS[1, 0], BOUNDS[1, 1], n_per_axis)
    X1, X2 = np.meshgrid(x1, x2)
    X = np.column_stack([X1.ravel(), X2.ravel()])
    return X, X1, X2

X_grid, X1, X2 = make_grid(75)
mean, var = query_function_posterior_batched(
    al.gp_model, al.params, X_grid, batch_size=250)

The final surrogate can then be compared against the true Branin-Hoo function. The posterior variance panel highlights where the model remains least certain after the sequential design.

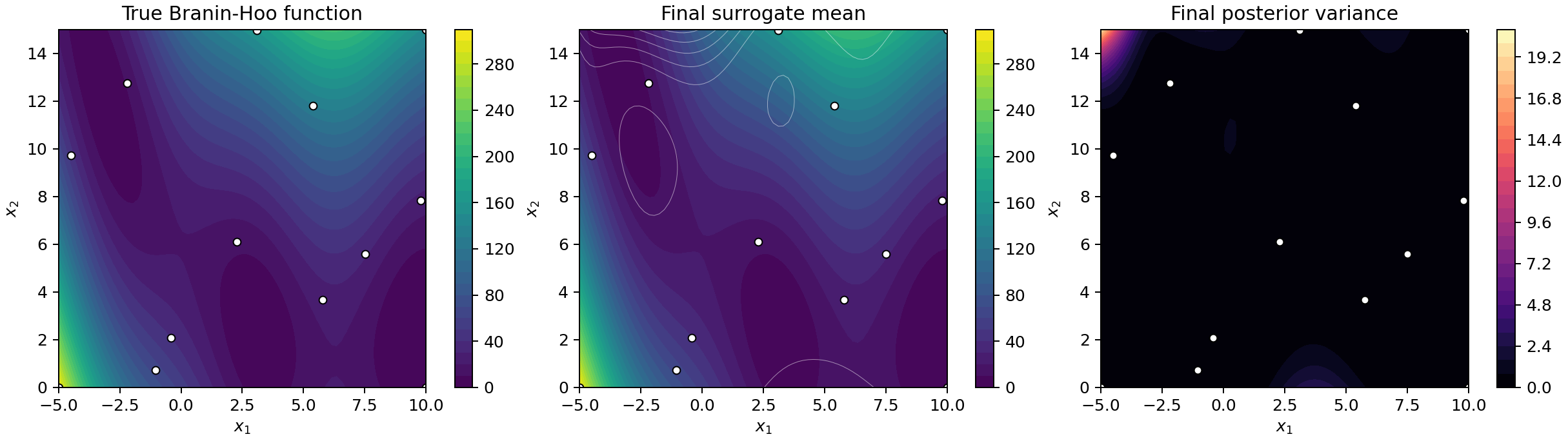

Final Branin-Hoo surrogate mean and posterior variance

For the figure-generation run used in this tutorial, the final design contains:

  • 13 function-evaluation sites,

  • 12 first-order directional derivative observations,

  • 6 second-order directional derivative observations.

The final grid RMSE recorded on a 25 by 25 test grid was approximately 0.70. The exact value can vary slightly with optimizer settings and random seed.

—

Reproducing the Figures#

The figures on this page are generated by:

python docs/source/JetGP_module_examples/active_learning/active_learning_branin_hoo.py

The script writes:

  • docs/source/_static/active_learning_branin_sequence.png

  • docs/source/_static/active_learning_branin_surrogate.png

Summary#

This tutorial shows how cost-aware active learning can combine function values, first-order directional derivatives, and second-order directional derivatives inside a single sequential design loop. On the Branin-Hoo function, the method uses cheap derivative observations to enrich an initial 10-point design before forming the final GDDEGP surrogate.
